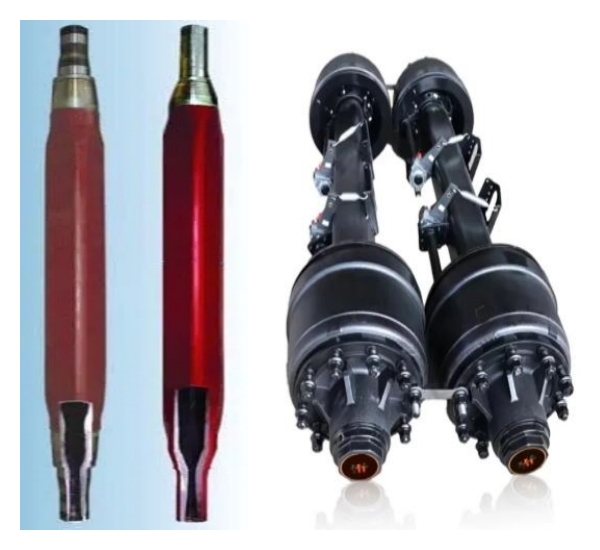

The axle shaft and the axle are two distinct components.

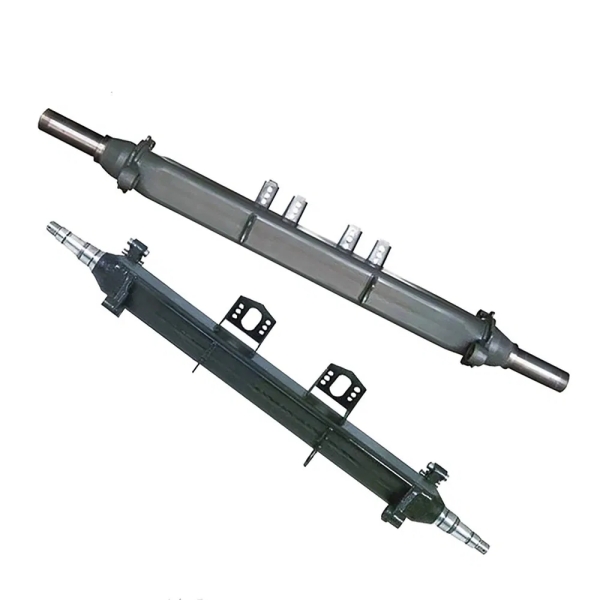

The axle shaft typically appears in the form of a bare shaft, which is simply a smooth axis without any attachments. The concept of an axle is an extension based on the axle shaft. By welding components such as brake backing plates, spherical bearing seats, and air chamber seats, the axle shaft is meticulously constructed into an axle assembly. Subsequently, on this assembly, numerous parts including the camshaft assembly, brake assembly, wheel-end assembly, cotter pins, adjusters, ABS sensors, and ABS positioning clamps are mounted to form the complete structure of the axle. Therefore, it can be said that an axle can be referred to as an "axle assembly."

Function of the Axle Shaft

The axle shafts of a semi-trailer are connected to the wheels at both ends through the wheel-end assembly and to the chassis via the suspension system in the middle. The chassis is the main location for cargo loading. Therefore, the strength of the axle shaft's heavy-load performance directly determines the carrying capacity of the semi-trailer and is an important performance parameter for owners when selecting axle products.



Differences Between American and German Axle Shafts.

Based on differences in appearance and manufacturing processes, axle shafts can mainly be divided into American and German types, with the most significant differences lying in the hub section.

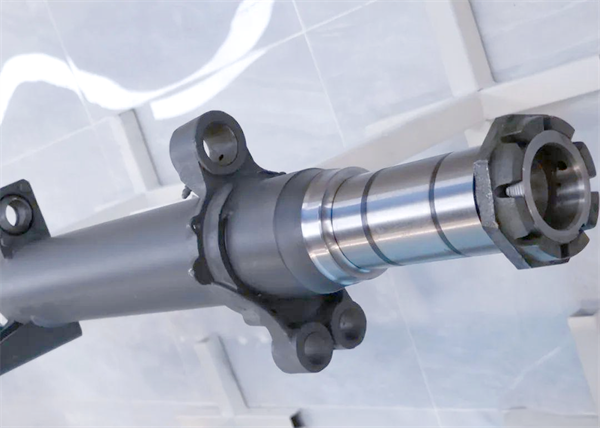

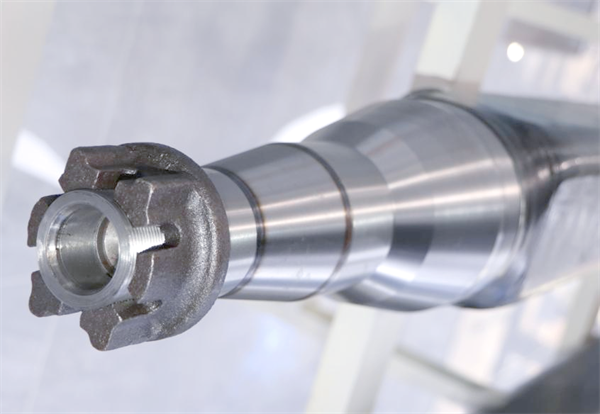

(1) In terms of appearance, the hub of the American axle shaft is designed to be more robust, retaining the shape of the axle tube and having a more regular overall structure. In contrast, the hub of the German axle shaft is relatively slender, with irregular end treatment and more beveled surfaces. This makes the hub section of the American axle shaft thicker, thereby enhancing the strength of the connection with the bearing and consequently increasing its load-bearing capacity. In comparison, the main advantage of the German axle shaft lies in its lighter weight.

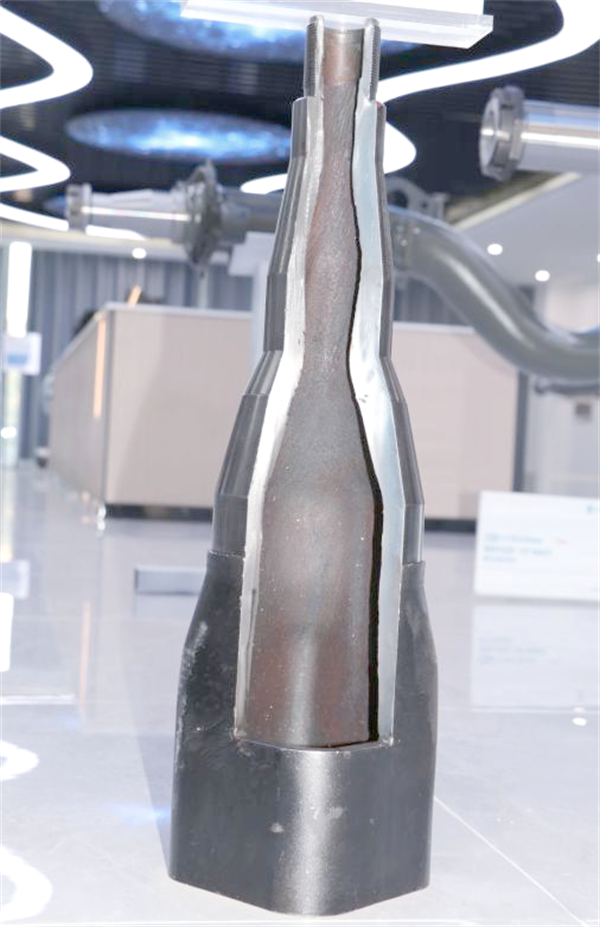

(2) From the perspective of manufacturing processes, American axle shafts use a "one-piece" casting technology, meaning that the hubs at both ends of the axle shaft and the central axle body are cast directly from a single piece of steel. Traditional German axle shafts, on the other hand, have their hubs and axle bodies cast separately and then joined together by welding. The American and German axle shafts, produced using different manufacturing processes, exhibit significant differences in performance. The American axle shaft, due to its unique "one-piece" casting technology, achieves seamless integration between the hub and the axle body, completely eliminating the possibility of welding deformation. This significantly enhances its heavy-load resistance, making it well-suited for the needs of heavy vehicles. The German axle shaft, using the traditional "three-piece" process, allows for manual intervention during the welding of the hub and axle body to adjust the camber angle. This design performs well in reducing tire wear and fuel consumption. However, when it comes to the load-bearing capacity of the hub alone, the American axle shaft undoubtedly has the upper hand.

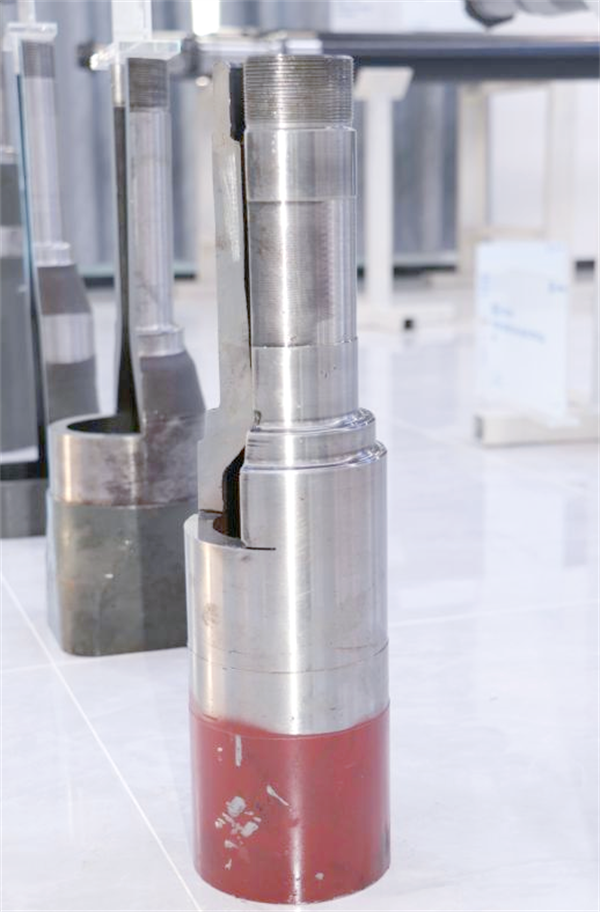

It is worth noting that currently, most axle shafts produced by domestic axle manufacturers, whether American or German, have adopted an "integrated" heat treatment technology, where the hub and axle tube are directly forged from a single steel pipe. This technological choice is partly to meet the specific demands of the domestic freight market.

(3) Overall, the American axle shaft performs well in terms of cost-effectiveness. It has a relatively low purchase cost and excellent heavy-load performance, resulting in a larger installed base and more convenient maintenance. However, it also has certain drawbacks, including a heavier weight and a relatively higher maintenance frequency. The American axle shaft can adapt to various general cargo transportation conditions and plays an important role in the transportation of heavy goods such as sand and gravel, steel coils, timber, and coal.

The German axle shaft, with its lighter weight, superior heat dissipation and braking performance, and stronger stability and reliability, performs well in long-distance transportation, especially in the transportation of valuable goods or in complex mountainous areas, where the demand is more urgent. However, its high price, scarcity of spare parts, and significant upfront costs limit its application to some extent.
